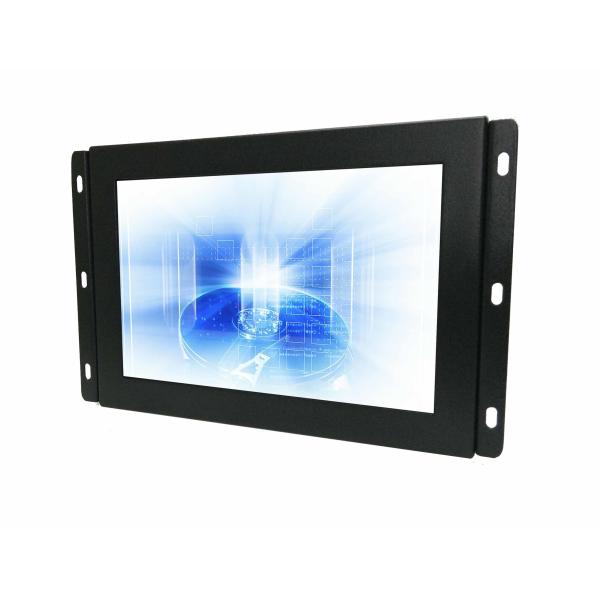

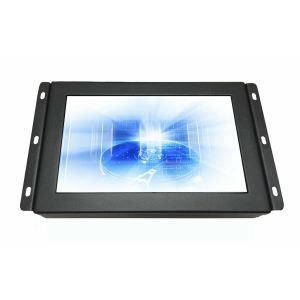

    7 inch rgb widescreen 800x480 Capacitive Touchscreen lcd monitor

    Ask Lasest Price
    Brand Name : Axnew
    Model Number : AXD-07OPN1P2-T2
    Certification : CE FCC Rohs
    Price : US$150~299
    Payment Terms : T/T, Western Union, L/C, D/A
    Supply Ability : 1000Units/Month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    7 inch rgb widescreen 800x480 Capacitive Touchscreen lcd monitor

    7 inch rgb widescreen 800x480 Capacitive Touchscreen lcd monitor


    Features and Advantages


    1. 7'' with 800X480, led backlight

    2. industrial control board with wide temperature supports the displays working 24 hours

    3.Open frame design to protect the LCD screen

    4. VGA DVI interfaces ;No touch screen

    5. 15 inch open frame monitor with high brightness 1000nits for outdoor advertising , outdoor player ,campus and industrial

    terminals etc

    6. Low consumption with wide temperature operation


    LCD monitor information
    Model NumberAXD-07OPN1P2-T2
    7’’ Touch LCD Monitor
    Type7 “ TFT Active Matrix LCD with LED Backlight
    Active Display Area(mm)154.08 (H) x 85.92 (V)
    Pixel Pitch(mm)0.0642 (H) x 0.1790 (V)
    Resolution800 x 480, up to 1024X768
    Contrast Ratio500:1 (typ.)
    Display Color16.7 M colors
    Brightness250(Typ)
    Viewing Angles140(H);120(V)
    Response Time10ms/15ms

    Environmental Temperature
    Operating Temperature-10℃~70℃
    Storage Temperature-20℃~80℃

    Signal Input
    PCRGB analog(VGA), HDMI
    RGB FrequencyH:31.5~38kHz, V:50~60Hz

    Power Specification
    Voltage ConsumptionAC 100~240V,Universal,±10% ; AC/DC 12V4A
    3.3W typical, normal operation

    Touch Screen Optionalcapacitive touch (anti-vandal)
    capacitive touch typeG+G cover glass
    Touch interfaceUSB
    Transmittance>=88%
    Input voltageless than 5.5V
    working temperature-10℃~65℃
    touch life>=5,000,000 times in one position

    Dimensions
    Holes fixingsVesa mounting 75x75/ fixing holes on the right/left
    Mechanical dimensions208mmx124mmx31mm
    DrawingsPlease contact us for details
